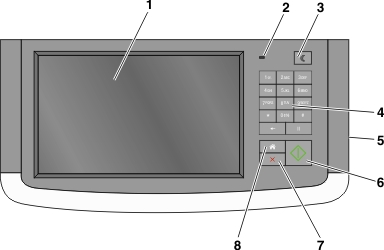

Display

Lets you view scanning, copying, faxing, and printing options as well as status and error messages

Indicator light

• Off—The power is off.

• Blinking green—The scanner is warming up, processing data, or printing.

• Solid green—The scanner is on, but idle.

• Blinking red—Operator intervention is needed.

Sleep

Enables Sleep mode

The following are the statuses of the indicator light and the Sleep button:

• Entering or waking from Sleep mode—The indicator light is illuminated solid green, Sleep button is unilluminated.

• Operating in Sleep mode—The indicator light is illuminated solid green, Sleep button is illuminated solid amber.

The following actions wake the printer from Sleep mode:

• Touching the screen or pressing any button

• Opening an input tray, cover, or door

• Sending a print job from the computer

• Performing a power-on-reset with the main power switch

Keypad

Lets you enter numbers, letters, or symbols on the display

USB port

Lets you insert a USB flash drive to send data or to save scanned images.

For instructions on how to use the USB port, see Printing from a flash drive.

Submit

Lets you submit changes made in the scanner settings

Stop/Cancel

Stops all scanner activity

Note: A list of options is displayed once Stopped appears on the display.

Home

Lets you navigate back to the home screen
