Using the control panel

Lexmark MS531, Lexmark MS631, and Lexmark MS639

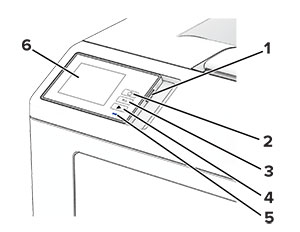

Parts of the control panel with numbered callouts.


Control panel part

Function

1

Power button

  • Turn on or turn off the printer.

    Note:  To turn off the printer, press and hold the power button for five seconds.

  • Set the printer to Sleep mode.

  • Wake the printer from Sleep or Hibernate mode.

2

Home button

Go to the home screen.

3

Back button

Return to the previous screen.

4

Start button

Start a job.

5

Indicator light

Check the status of the printer.

6

Display

  • View the printer messages and supply status.

  • Set up and operate the printer.


Lexmark MS632 and Lexmark M3350

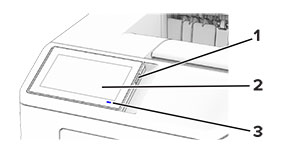

Parts of the control panel with numbered callouts.


Control panel part

Function

1

Power button

  • Turn on or turn off the printer.

    Note:  To turn off the printer, press and hold the power button for five seconds.

  • Set the printer to Sleep mode.

  • Wake the printer from Sleep or Hibernate mode.

2

Display

  • View the printer messages and supply status.

  • Set up and operate the printer.

3

Indicator light

Check the status of the printer.
