Loading the 2,000-sheet dual input trays

The 2,000-sheet dual input drawer includes two trays: an 850-sheet tray and a 1,150-sheet tray. Although the trays are different in appearance, they require the same process for loading paper.

  1. Pull the tray out.

    picture showing the location of tray three of the dual input being opened

  2. Squeeze the length guide tab inward as shown, and slide the guide to the correct position for the paper size being loaded.

    picture showing the location of the paper guides

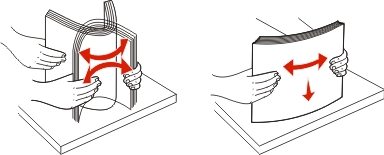

  3. Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the edges on a level surface.

    picture showing how to fan flex and straighten paper

  4. Load paper in the tray with the print side up.

    picture showing how to load the paper
    Note: Make sure the paper is below the maximum fill line on the rear guide. Overloading may cause jams.

  5. Insert the tray.
