Understanding the solution architecture

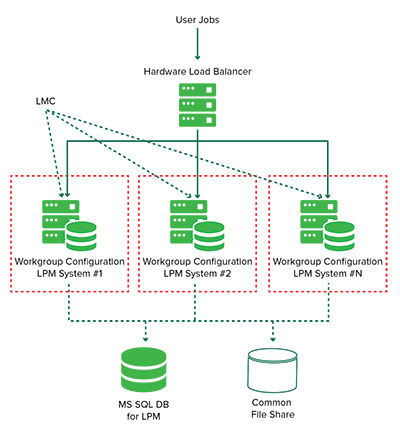

The following shows a shared Microsoft SQL Server environment with a hardware load balancer and workgroup servers:
Note: We recommend using a configuration where the Print Delete script and the Reports Aggregator service run on only one workgroup.

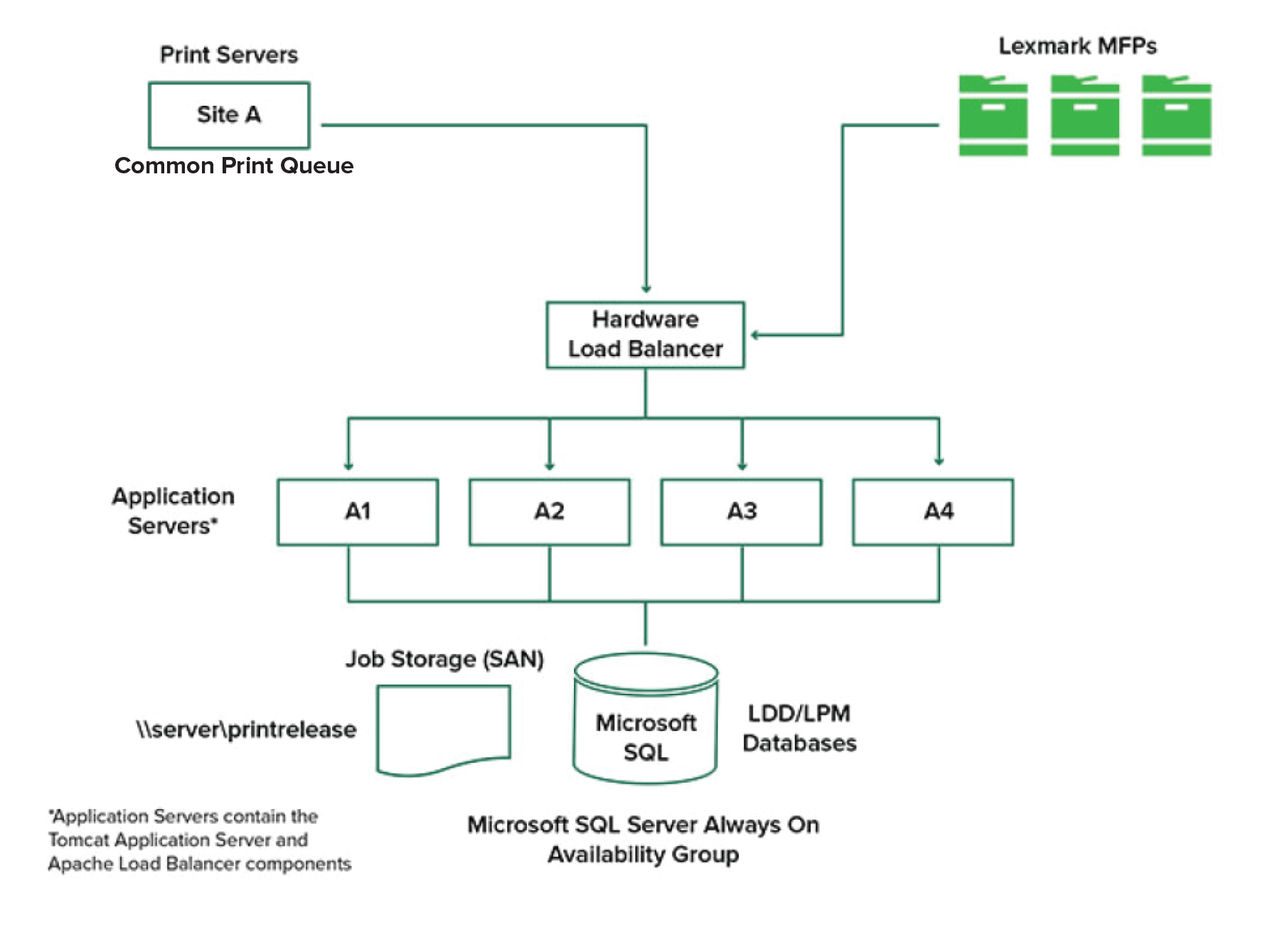

The following shows an environment with one data center:

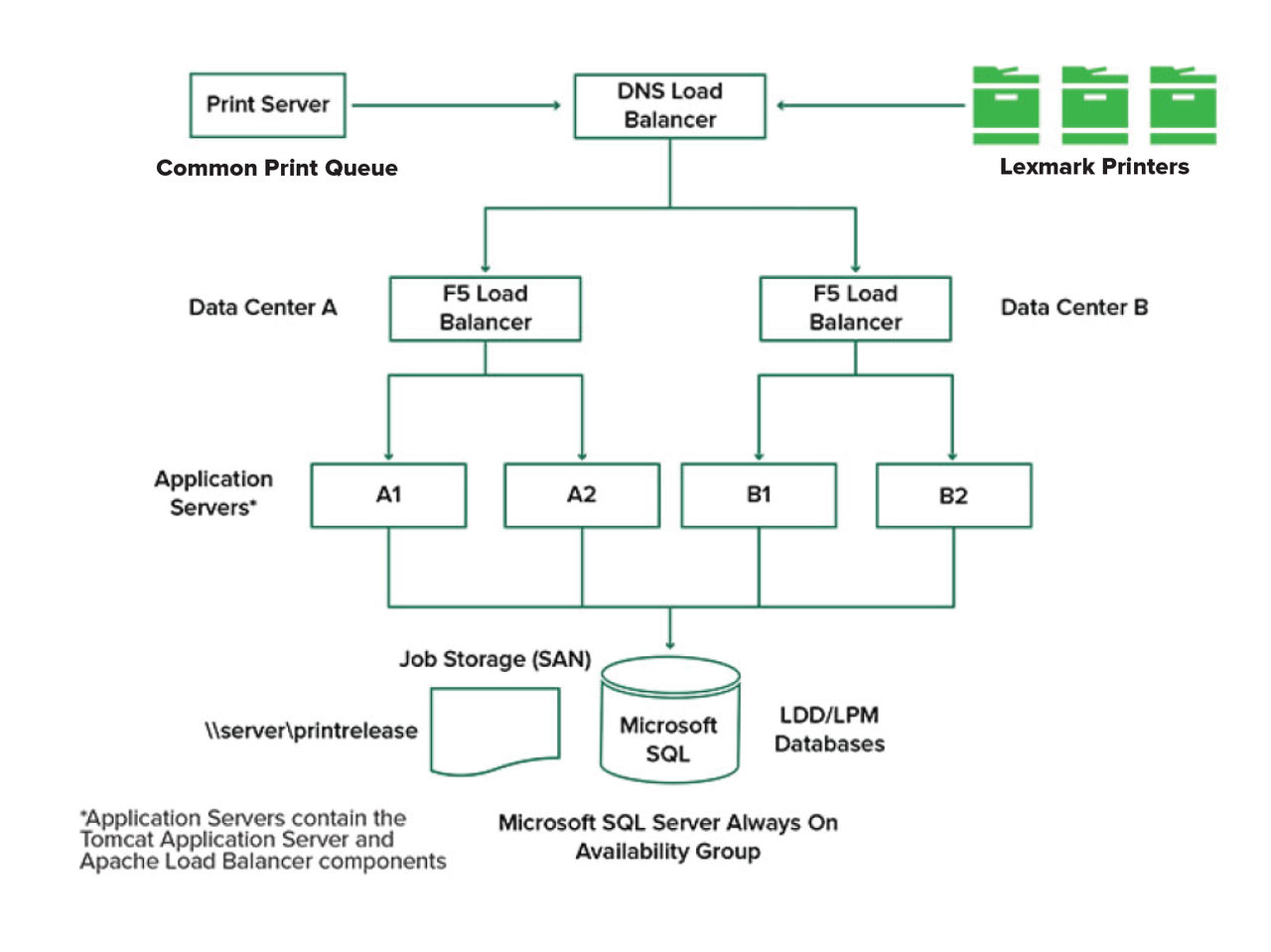

The following shows an environment with two data centers:

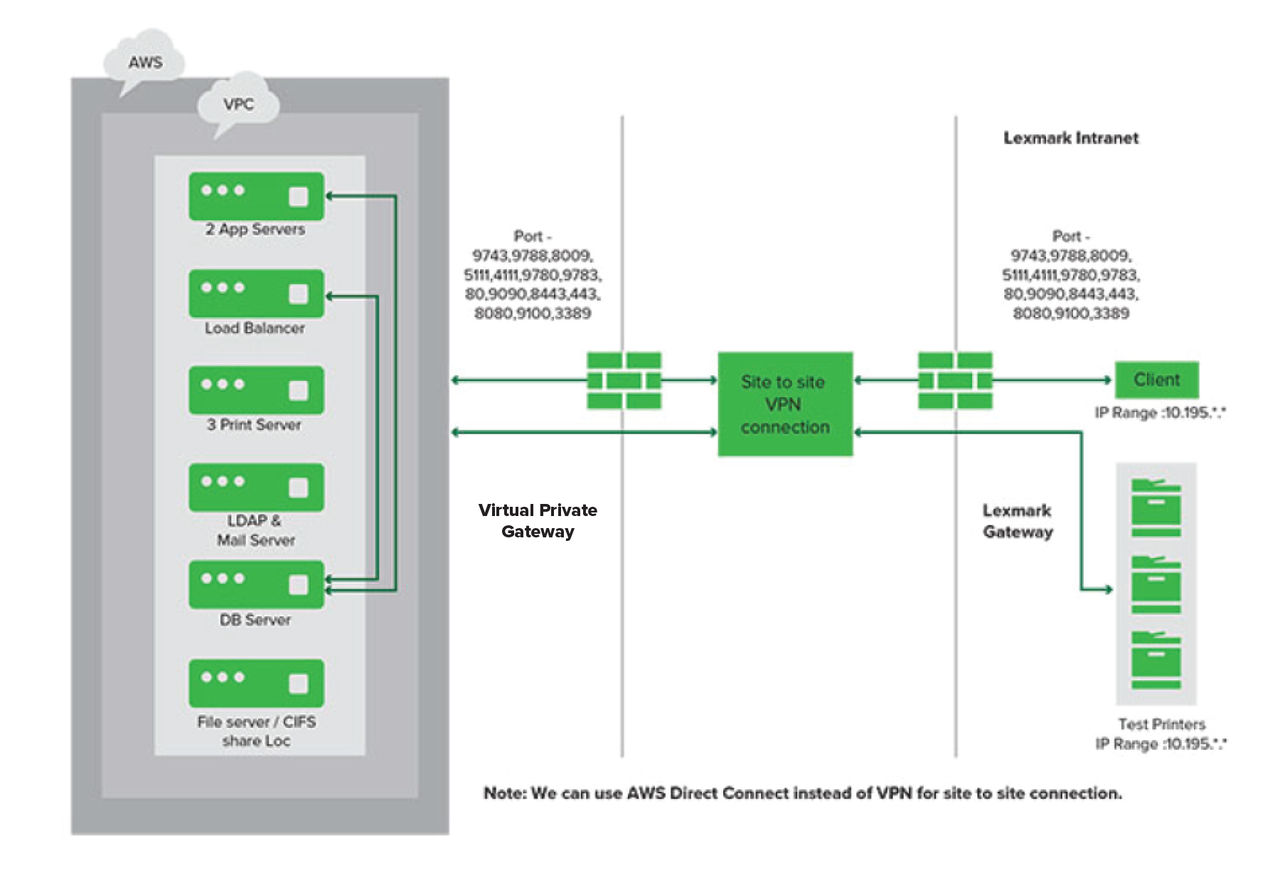

The following shows an environment where LPM is hosted in the cloud:

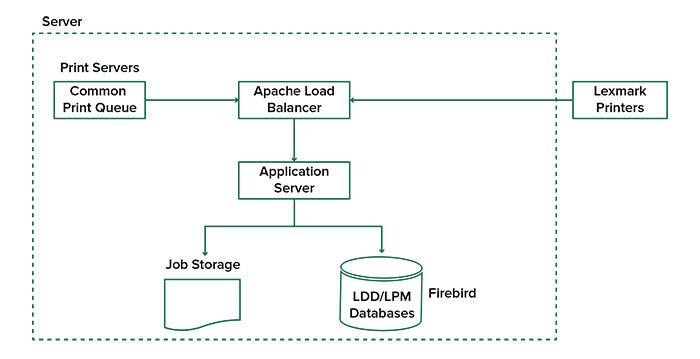

The following shows a typical workgroup with single-server installation and Firebird Database:

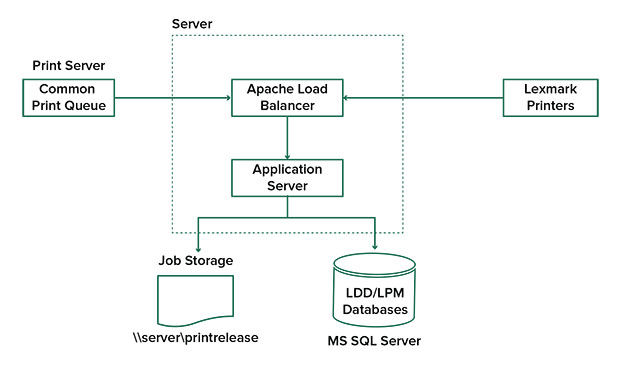

The following shows a workgroup installation with separate print server and Microsoft SQL Server:
